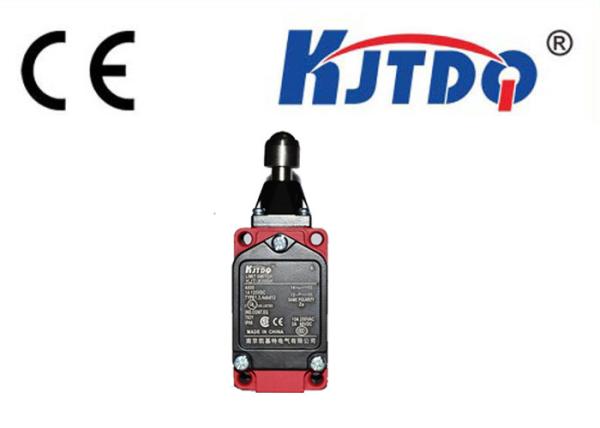

Stainless Steel Micro Limit Switch 100 MΩ Min Insulation Resistance

Stainless Steel Micro Limit Switch 100 MΩ Min Insulation Resistance

  • 1
  • 2

Brand Name : KJTDQ

Model Number : KJT-XW6K

Certification : CE,RoHS

Place of Origin : JIangsu,China

MOQ : 5 sets

Price : $18.9-26.9

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 pcs/mouths

Delivery Time : 7-15 work days

Packaging Details : Carton package

Name : High temperature limit switch

Model : KJT-XW6K

Operating tem. : -25℃~350℃

Protection Level : IP67

Contact Now

KJT-XW6K Series High Temperature Limit Switch

Quick details:
Name:High temperature limit switch
Model: KJT-XW6K
Operating temp.: -25℃~350℃

Specification:

Rated Voltage(V) Noninductive Load
(A)
Inductive Load
(A)
Resistance Load Lamp Load Inductive Load Motor Load
NC NO NC NO NC NO NC NO
125 V AC 10 3 1.5 10 5 2
250 V AC 5 2 1 5 3 1.0
480 V AC 3 1.5 0.8 3 1.5 0.8
600 V AC 1 1 0.5 1.5 1 0.5
8 V DC 10 6 3 10 6
14 V DC 10 6 3 10 6
30 V DC 6 4 3 6 4
125 V DC 0.8 0.2 0.2 0.8 0.2
205 V DC 0.4 0.1 0.1 0.4 0.1

Model No.
KJT-XW6K
Name High Temperature Limit Sensor
Rated current 10 A 250 VAC
Operation speed 1 mm--2 m/sec
Operating frequency Mechanical:120 operations/minute
Electrical:30 operations/minute
Contact resistance 15 mΩ max.(initial value)
Insulation resistance 100 mΩ min.(at 500VDC)
Dielectric strength 1000VAC,50/60HZ for 1 minute between terminals of the same polarity
2200VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts
2200VAC,50/60 HZ for 1 minute between each terminal and ground
Vibration 10-55 HZ,1.5 mm double amplitude
Shock Mechanical durable:1000m/Sec2(about 100G'S);
Malfunction(Misoperation):300m/Sec2(about 30G'S)
Operating temperature -60ºC ~ +350ºC
Operating humidity Max. 95% RH
Life Mechanical:15,000,000 above
Electrical:500,000 above
Protection degree IP 67
Weight 258 g
Logo Customized logo with Decal / Frosted / Print are available as request
Payment term 30% deposit in advance,70% before shipment,100% T/T in advance
Certificate CCC,CE,ISO9001
Design ability We can supply sample,OEM & ODM is welcome (Design,Engineering, Photographing,Sample, Production)

Application:

High temperature limit switch is widely used in steel mills, and the temperature can up to 350℃.

Competitive Advantage:

1) Double circuit type of limit switch
2) Temperature up to 350 ºC, products are divided into high temperature 200 ºC and 350 ºC two specifications

FAQ:

Q: What's your warranty ? How about the quality of your sensors ?
A: 18 mouths .
We have the certification of ISO,CE,CCC.Our sensors can replace many famous brand sensors(BALLUFF,IFM,P+F,TURCK,OMRON,SICK,Contrinex,Schneider,KEYENCE,
BANNER,BAUMER,AUTONICS,etc) You can provide us the date sheet and we check whether can produce.


Q: Can we have our logo or company name to be printed on your products or the package ?
A: Yes,you can.Logo or imprints can be printed on our products.
The minimum quantity is 500 pcs per logo.You can send us the artwork by email in JPEG or TIFF format.If you want your logo and company name to be printed on the package for the products(custom design package).Such as gift box and paper card,the MOQ is 500 pcs per model.You can send us the artwork by email in JPG/TIF/AI/EPS/TIFF or coreIDraw formats
